Product Description

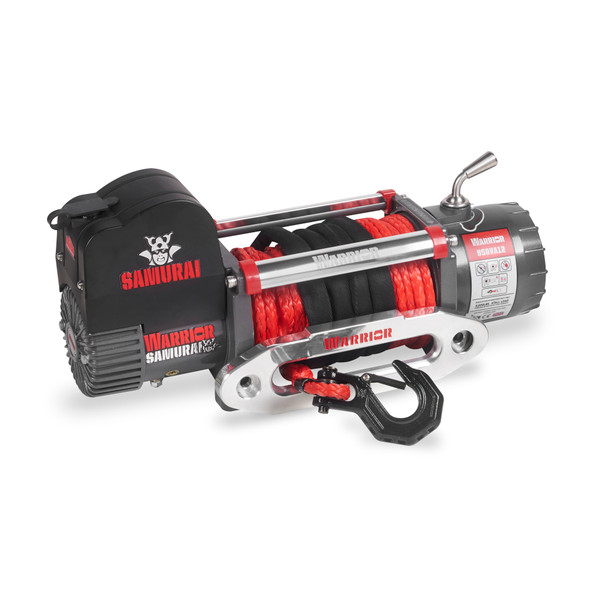

The Premium 'Next Generation' Samurai 9500lb (4309kg) electric winch is now even faster, with a lower current draw and boasts a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there's no heat build up in the drum.
This 4309kg model is an ideal winch for Recovery and 4x4 applications.Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing.
Supplied with stainless steel roller fairlead and fittings as standard.
Supplied with stainless steel roller fairlead and fittings as standard.
The 12V version is complete with an heavy duty integrated wireless remote.
| Rated Line Pull | 9500 lbs (4309 kg) |
| Motor Type | 12v : 6.1hp / 4.6kw 24v : 7.8hp / 5.8kw |
| Gearing | 196:1 |
| Clutch | Manual |
| Braking Action | External Brake |
| Drum Size (Dia x L) | 63 x 223 mm |
| Cable Material | Steel or Synthetic |
| Cable – Dia x L | Steel: 9.2mm x 26m Synth: 9.5mm x 25m |
| Mounting Pattern | 254 x 114 mm |
| Dimensions | 559 x 160 x 248 mm |
| Weight | 40.0 kg |
| Certification | CE |
| Line Pull lbs (kgs) | Line Speed 12v ft/min (m/min) | Line Speed 24v ft/min (m/min) | Amp Draw 12v | Amp Draw 24v |
|---|---|---|---|---|
| 0 | 33.4 (10.2) | 44.3 (13.5) | 50 | 45 |
| 2000 (907) | 17.4 (5.3) | 20.3 (6.2) | 120 | 90 |
| 3000 (1360) | 15.4 (4.7) | 17.3 (5.3) | 150 | 105 |
| 6000 (2721) | 10.1 (3.1) | 12.4 (3.8) | 260 | 190 |
| 8000 (3628) | 8.2 (2.5) | 9.5 (2.9) | 300 | 230 |
| 9500 (4309) | 7.2 (2.2) | 8.5 (2.6) | 320 | 250 |
