Product Description

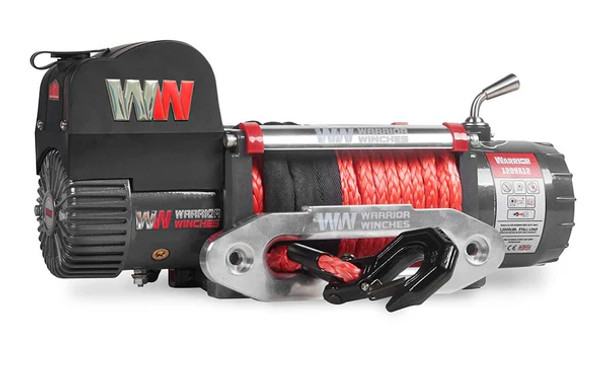

The premium 'Next Generation' Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there's no heat build up in the drum.
Ideal for vehicle recovery and 4x4 applications.
Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard.
Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contactors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with stainless steel roller fairlead and fittings as standard.
This 12V version is supplied with an heavy duty integrated wireless remote control.
| Rated Line Pull | 12000 lbs |
| Motor Type | 12V: Input: 6.7hp/5.0Kw Output: 3.2hp/2.4kW 24v: Input: 8.0hp/6.0Kw Output: 4.2hp/3.1kW |
| Gearing | 253:1 |
| Clutch | Manual |
| Braking Action | External Brake |
| Drum Size (Dia x L) | 63 x 223 mm |
| Cable Material | Steel or Synthetic |
| Cable – Dia x L | Steel: 10.2mm x 26m Synth: 11mm x 25m |
| Mounting Pattern | 254 x 114.3mm mm |
| Dimensions | 559 x 160 x 248 mm |
| Weight | 44.0 kg |
| Warranty | 3 Years |
| Certification | CE, UKCA |
| Layer of Rope/Cable | Line Pull: lbs(kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 12000 (5443) | 15.1 (4.6) |
| 2 | 9563 (4338) | 34.1 (10.4) |
| 3 | 7907 (3586) | 57.7 (17.6) |
| 4 | 6755 (3064) | 83.7 (25.5) |
