Product Description

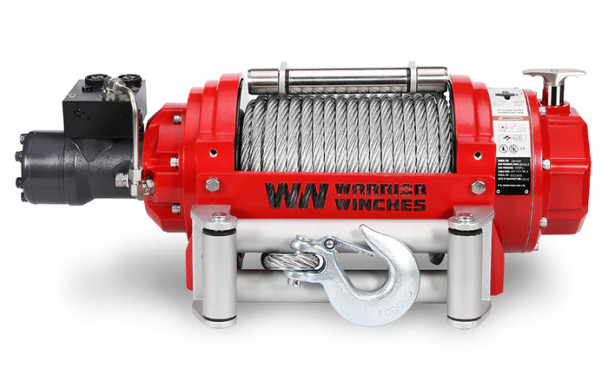

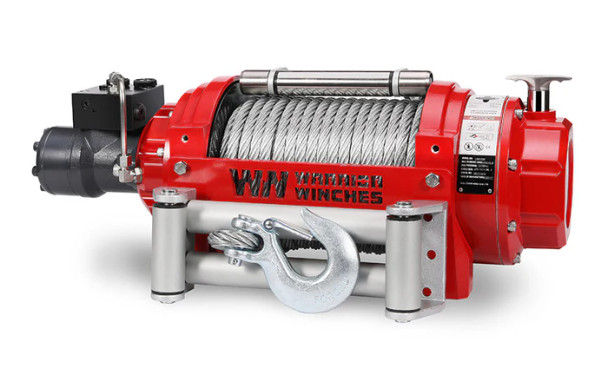

Warrior RV18000 8165kg series hydraulic winches meet EN 14992 & SAEJ-706 standards.
Ideal for use on recovery truck or low loader due to its tough commercial design.
Supplied complete and ready to mount including a Balance valve, Roller fairlead, Rope tensioner and steel cable wire rope.
Outstanding Features:
- EN14492-1 / Machinery Directive 2006/42/EC
- Drum to rope Ratio 10 : 1
- Wire Rope 2 : 1 Safety Factor
- Hydraulic and Mechanical Full Load Holding Brake
- Rope fixing 2.5 Times rated Load
| Rated Line Pull | 18000 lbs (8165 kgs) |
|---|---|
| Max Flow | 5-60L/min |
| Max Pressure Mpa | 16Mpa |
| Gearing | 17.3:1 |
| Drum Size Dia x L | 5.0 “×10.5” (127×266mm) |
| Cable/Rope Dia x L | 9/16”×91.8’ (14mm×28.0m) |
| Dimensions | 29.2×11.8×10.9” (742×300×277mm) |
| Weight | 86.2kg (190 lb) |
| Mounting Pattern | 12.0×4.5“ (303.5×114.3mm) 14.5×6.7” (368.5×171.2mm) 8-M12 |
| Certification | CE |
| Layer of Rope/Cable | Line Pull lbs (kgs) | Rope on drum ft(m) |
|---|---|---|
| 1 | 18000(8165) | 25.9(7.9) |
| 2 | 15017(6811) | 58.7(17.9) |
| 3 | 12882(5843) | 91.8(28.0) |
| Line Pull lbs (kgs) | Line Speed ft/min (m/min) | Flow L/min | Pressure Mpa |
|---|---|---|---|
| 0 | 24(7.3) | 10 (2.6) | 2.0(290.1) |
| 8000(3629) | 17.4(5.3) | 20 (5.2) | 5.8(841.2) |
| 12000(5448) | 13.1(4.0) | 40 (10.4) | 9.2(1334.3) |
| 15000(6810) | 6.6(2.0) | 50 (13.2) | 12.0(1740.5) |
| 18000(8165) | 4.6(1.4) | 60 (15.6) | 16.0(2320.6) |
