Product Description
Compact, tough. A hydraulic winch for industrial and commercial applications. The unique
patented steel gearing system combined with a highly efficient and powerful hydraulic
motor ensures maximum performance over the full load range. Complete with internal brake
to ensure maximum control and load holding. Stainless steel roller fairleads and fittings are
standard.
Standard Features:
♦ Line Capacity: 10,000lb (4536kg)
♦ Rope: 26.5m of 10.2mm Steel Cable with Clevis Hook
♦ Motor: Hydraulic Displacement 50ml/r
♦ Gearbox: Freespooling Clutch - Allows cable to be unwound manually
♦ Warranty: 12 Month Return to Base
Accessories:
♦ Wireless Control: Available as optional extra
♦ Mounting Plate: Available as optional extra
♦ Roller Fairlead: Heavy Duty 4-Way Roller Fairlead with Chromed Rollers
♦ Mounting Bolts: Included for Standard installations
Other Information:

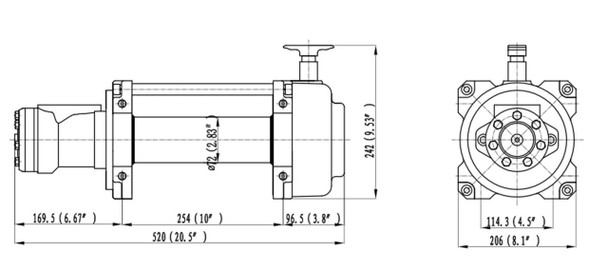

♦ Dimensions: 520mm L x 206mm D x 242mm H
♦ Mounting Bolt Pattern: 254mm x 114.3mm
♦ Approx. Shipping Weight: 55kg
♦ Line Pull - No Load: 2.8 m/min (20L p/m at 25 bar)
♦ Line Pull - Full Load: 7.6 m/min (50L p/m at 130 bar)
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
