Description

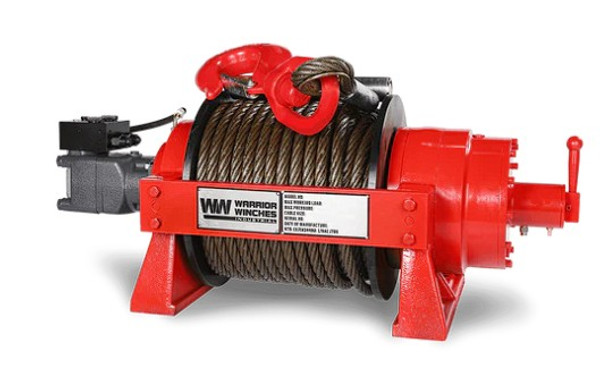

JR Series Hydraulic Winches: Compact, Powerful, Unstoppable.
When the job demands serious strength and a compact design, the JR Series Hydraulic Winches deliver. Built for tough, real-world performance, these winches are engineered to handle the most demanding tasks with unmatched strength and reliability.
With capacities ranging from 22,000 to 66,000lbs the JR Series is designed to tackle heavy loads with ease while maintaining a compact, efficient footprint. Every unit is designed to meet the rigorous SAEJ-706 standard, ensuring top-tier durability, precision, and safety in industrial and commercial applications.
If you need maximum power without wasting an inch of space, the JR Series is the solution. Built tough. Battle-tested. Ready to work.
- Rugged High Torque Motor: Designed to handle heavy-duty tasks, ensuring consistent performance under load.
- 2-Stage Planetary Gearing: High-precision gearing system for efficient torque transfer and smooth operation.
- Air Operated and Manual Freespool: Allows for quick and easy cable deployment, enhancing operational efficiency.
- Heavy Duty Steel Cast Frame: Constructed to withstand the rigors of industrial environments, ensuring durability and longevity.
- Complete with Tensioner and Balance Valve: Ensures smooth and controlled lowering of the load, enhancing safety during operations.
Specifications:
♦ Line Capacity: 15,000kg (33,000lb)
♦ Rope: 22mm of 50m (164 ft) Steel Cable with Clevis Hook
♦ Drum Dia x L: 210 x 340mm (8.27 x 13.39")
♦ Motor: Hydraulic 120L/min Max Flow at 180 Bar (Max Pressure: 241 Bar)
♦ Gearbox: 40:6:1 Gear Ratio
♦ Warranty: 1 Year Standard Return to Irish Base Warranty
♦ Dimensions: 1070 x 500 x 415mm (42.13 × 19.69 × 16.34")
♦ Mounting Bolt Pattern: 522 × 180 × 280mm (20.55 × 7.09 × 11.02”)
♦ Approx. Shipping Weight: 410kg (903.8lbs)
Line Pull and Speed Details:
| Layers of Rope | Line Pull: lbs(kgs) | ||
|---|---|---|---|
| 1 | 33000 (15000) | ||
| 2 | 27700 (12565) | ||
| 3 | 23900 (10841) | ||
| 4 | 21000 (9526) | ||
| Line Pull: lbs (kgs) | Line Speed: ft/min (m/min) |
Flow L/min | Pressure Bar |
|---|---|---|---|
| 0 | 4.3 (1.3) | 20 | 40 |
| 21000 (9526) | 13.8 (4.2) | 60 | 100 |
| 23900 (10841) | 18 (5.5) | 80 | 120 |
| 27700 (12565) | 22.6 (6.9) | 100 | 150 |
| 33000 (15000) | 24.6 (7.5) | 120 | 180 |
Whilst every effort has been made to ensure accuracy of information relating to this product, in the interest of technical improvement this specification may be altered without notice.
