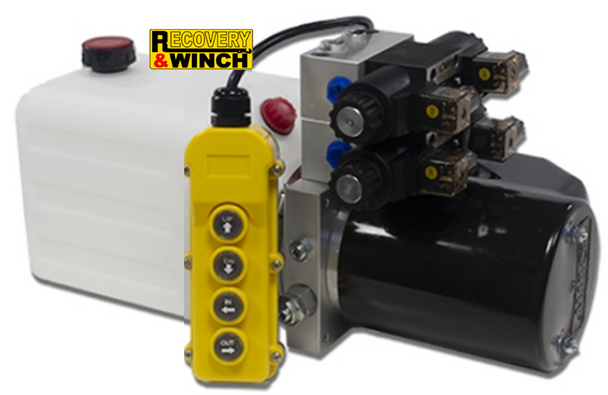

Hydraulic Power Unit Pack Twin Double Acting 12V

Double Acting Hydraulic Powerpack to operate two double acting cylinders independently on a variety of applications, complete with four button pendent.

12v dc 1.6kw electric motor c/w relay and plastic motor cover.
2.1cc/rev gear pump.
4.5 Litre reservoir c/w drain plug (larger tanks available on request).
Powerpack complete with suction strainer, return oil conveyor and filler breather.
Horizontal mounting
Max pressure 200 bar.
Relief valve set at 160 bar but adjustable from 40-200 bar as standard.
Max flow 5 l/min
Relief valve and P line check
Port size 3/8" BSP.

4 Button pendent control on a 4 metre lead.
Suitable for all double acting applications.

401 x 241 x 228mm (L x H x D)

The motor is designed for intermittent use (S3) which is defined as a sequence of identical cycles of 10 minute duration. The cycle comprises a period of on-load (td) operation in which the motor may reach its maximum permitted temperature, followed by an off-load (tm) of time, insufficient for the motor to return to ambient temperature.

The value of S3 on this motor equates to 7% or 42 seconds of on-load operation in a ten minute period.
